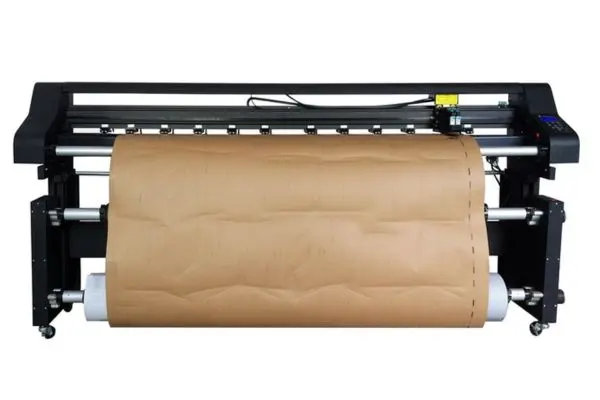

JINDEX UPC  Apparel Patterns  2 in 1 Inkjet Cutter

Category
Enquiry Now

Specification
Model Max Paper Width Max Cut/Plot Width Plotting Speed & Resolution Max Cutting Speed Carriage Cartridges
JD-UPC2-160F 165 cm 160 cm 80 m²/hr @ 300–600 dpi 900 mm/s HP45A/B 2× HP45
JD-UPC2-180F 185 cm 180 cm 80 m²/hr @ 300–600 dpi 900 mm/s HP45A/B 2× HP45
JD-UPC2-200F 205 cm 200 cm 90–100 m²/hr (up to 180 m²/hr with 4×HP45) @ 300–600 dpi 900 mm/s HP45A/B 2× HP45 (4-head optional)
JD-UPC2-220F 225 cm 220 cm 90–100 m²/hr (up to 180 m²/hr with 4×HP45) @ 300–600 dpi 900 mm/s HP45A/B 2× HP45 (4-head optional)

Additional Specifications

  • Plotting Resolution: 300–600 dpi

  • Paper Feed: Continuous roll; optional second auto-feeding paper roller

  • Motherboard: ARM9-based integrated control, bitmap plotting & vector cutting

  • Display: Large LCD with overlap test, cut-pressure control, paper movement control

  • Interface: Super LAN Port (multi-plotter setup supported)

  • Power: <300 W, 110–260 V AC, 47–66 Hz (90–120 V optional)

  • CAD Compatibility: GERBER, LECTRA, VETIGRAPH, PAD, ASSYST, DOCAD, OPTITEX, STYLECAD, TORAY, TUKA

Features

  • 2-in-1 Functionality – Inkjet plot + knife cut in one machine

  • Dual Front Feeding Rollers (Motorized) – Stable tracking of rolls up to 50 kg

  • Fast Throughput – Up to 90–100 m²/hr (model dependent) at 300–600 dpi

  • High Cutting Speed – 900 mm/s with overlap test and cut-pressure adjustment

  • Material Flexibility – Handles thin to thick paper (50–800 gsm)

  • HP45 Cartridges – Easy to use; optional 4-head upgrade for higher productivity

  • Big LCD Display + Keypad – Real-time status, ink test, pressure adjustment, front/back paper move, pause/stop/re-run

  • Closed-loop German Drive Motor – Smart, stable, 100% maintenance-free operation

  • LAN Workflow – Server/terminal software for queuing, previewing, and controlling jobs from any PC

  • Smart CAD Recognition – Auto-detects cut/draw lines; supports Inner/External/Half Cut & Draw commands

  • Realtime Editing – Manage and modify queue files directly from the server without stopping jobs
