DL8100P

DL8100P

Computerized Lockstitch Sewing Machine With Double Stepping Motor
• Double stepper motors drive for perfectly synchronized movements
• Starts with a micro bird’s nest and ends with a short thread tail, ensuring beautiful sewing quality
• Exceptional craftsmanship with complete attention to detail

Categories ,
Enquiry Now

Model Specifications
Model Range Length (mm) Control Movement Mode Needle Size Speed (RPM)
BM1 0-5 15.5 手动 (Manual) 移动 (Move) 自动 (Auto) #11-#14 4500
BM1A 0-5 15.5 Hand Knee Auto #11-#14 4500
BH1 0-7 18 5.5 13 9 #18-#21 4000
BH1A 0-7 18 – – – #18-#21 4000
Function Codes
Function Code 16 Code 17
Auto Trimming ✓ (V) ✓ (V)
Reverse Feeding ✓ (V) ✓ (V)
Electronic Thread Gripper ✓ (V) ✓ (V)
Auto Lifter ✓ (V) ✓ (V)
Bird Nest Prevention ✓ (V) ✓ (V)

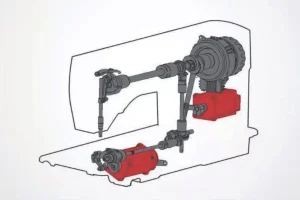

Double stepper motors drive for the perfect coherent movements

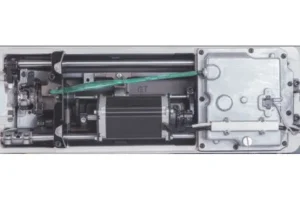

The bottom stepper motor controls the double knives thread trimmer and presser foot
lifter, and the right side stepper motor controls the stitch distance and reverse stitch. The
computer control technology integrates every function of the sewing machine, and realize
the perfect coherent movements.



Starting with micro-bird nest, ending with short thread head, for the beautiful sewing
quality

Due to the perfect coherent movements, it requires a very short thread head at the needle
at the sewing starting, which significantly reduces the bird nest on the bottom side. The
double knives thread trimmer is very stable, and it makes the ending with Max. 3 mm
thread head, which realize the beautiful sewing quality.
