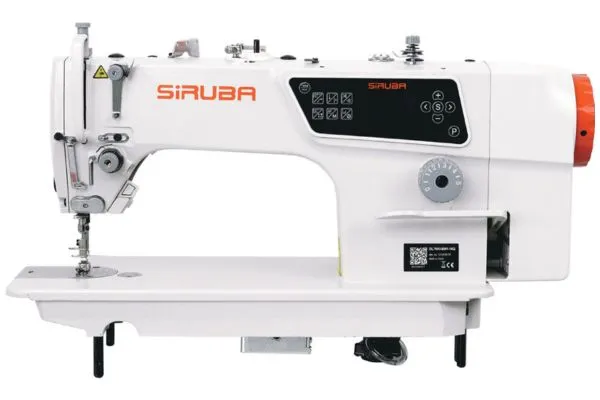

DL7600 SERIES FEATURES
BM1/BH1/BX2-16Q
Single Needle Direct Drive Lockstitch Machine With Thread Trimmer
| Model | Needle Config | Manual (Hand) | Kings Movement | Auto Mode | Speed (RPM) | Auto Trim | Kings | Auto |
|---|---|---|---|---|---|---|---|---|
| BM1-16Q | DB x 1 #11-#14 | 5.5 | 13 | 10 | 4000 | ✓ | ✓ | ✓ |
| BH1-16Q | DB x 1 #16-#18 | 5.5 | 13 | 10 | 3500 | ✓ | ✓ | ✓ |
| BX2-16Q | DB x 1 #20-#23 | 5.5 | 13 | 10 | 3500 | ✓ | ✓ | ✓ |

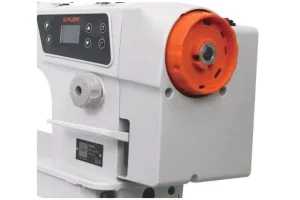

• Mechatronics Type
– Built-in control box for simplified installation and easy operation.
• Direct Drive Servo Motor
– Provides fast response and precise motion.

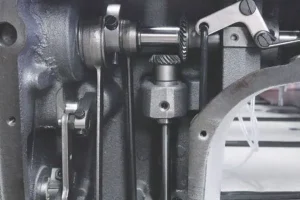

• Through-Shaft Design
– Features light torque, quick startup, and smoother fabric feeding.
• Smooth Machine Operation
– Low noise and low vibration for a quieter, more stable experience.

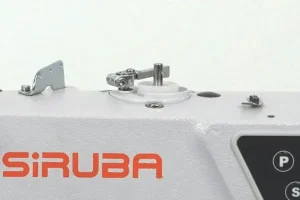

• Equipped with LED Light, Built-in Bobbin Winder & Single Stitch Function
– Ensures enhanced visibility and convenience during operation.
• Automatic Needle Positioning
– Automatically stops the needle in the up or down position as needed.
• Automatic Thread Trimming (BM1)
– Efficient thread cutting function to improve sewing workflow.
