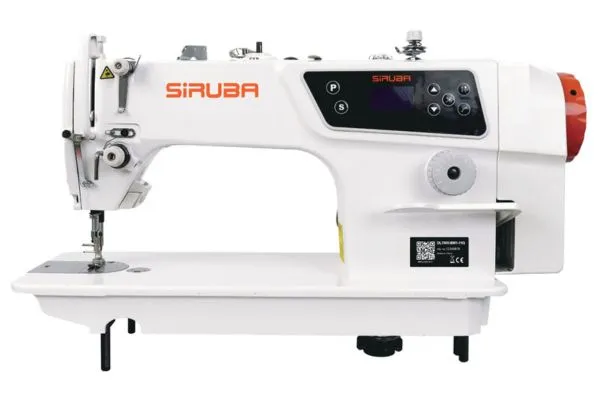

DL7600 SERIES FEATURES

DL7600 SERIES FEATURES

M1/H1/X2

Direct Drive Needle Positioning Lockstitch Machine

BM1/BH1/BX2-11Q

Single Thread Trimming High-speed Lockstitch Sewing Machine

Categories ,
Enquiry Now

DU7600 Specifications Table



Model Needle Config Hand Knee Auto Range Speed (RPM) Auto trimming Reverse Feeding Thread Gripper Auto Lifter
M1-Q DBx1 #14 5.5 13 10 0~5 4500 – – – –
H1-Q DBx1 #16-#18 5.5 13 10 0~5 3500 – – – –
BX2-Q DBx1 #20-#23 5.5 13 10 1~7 3500 – – – –
BM1-11Q DBx1 #14 5.5 13 10 0~5 4500 V – – –
BH1-11Q DBx1 #16-#18 5.5 13 10 0~5 3500 V – – –
BX2-11Q DBx1 #20-#23 5.5 13 10 1~7 3500 V – – –
BM1-16Q DBx1 #11-#14 5.5 13 10 0~5 4000 V V V V
BH1-16Q DBx1 #16-#18 5.5 13 10 0~5 3500 V V V V
BX2-16Q DBx1 #20-#23 5.5 13 10 1~7 3500 V V V V



• Mechatronics Type
 – Built-in control box for simplified installation and easy operation.

• Direct Drive Servo Motor
 – Provides fast response and precise motion.

• Through-Shaft Design
 – Features light torque, quick startup, and smoother fabric feeding.

• Smooth Machine Operation
 – Low noise and low vibration for a quieter, more stable experience.

• Equipped with LED Light, Built-in Bobbin Winder & Single Stitch Function
 – Ensures enhanced visibility and convenience during operation.

• Automatic Needle Positioning
 – Automatically stops the needle in the up or down position as needed.

• Automatic Thread Trimming (BM1)
 – Efficient thread cutting function to improve sewing workflow.
