ASK-ASM101

ASK-ASM101

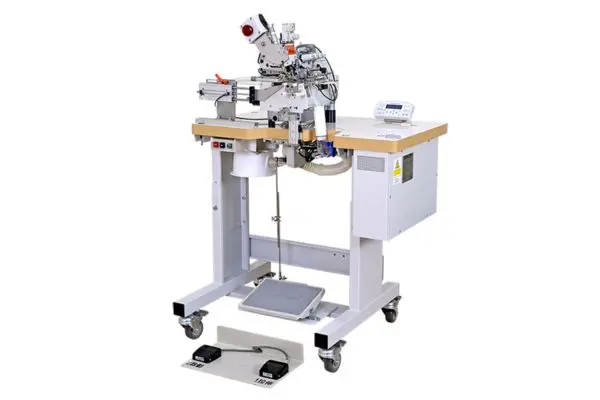

Automatic Ribbed Cuff Attaching Machine

Categories ,
Enquiry Now

Model ASK-ASM101
Machine Head SiRUBA 747KST-514M-3-24
Sewing Speed 5500 SPM (Max)
Needle Type DC×27 #11
Presser Foot Height 8.5 mm (Max)
Overedge Width 4 mm
Needle Distance 2 mm
Fabric Thickness Up to 7 mm
Rib Size Circumference: 225–440 mm
Height: 20–90 mm
Sewing Range Adjustable within rib size range
Air Consumption 180 L/min
Air Pressure 0.5 MPa
Power Supply Single Phase 1Φ AC 200~240V, 50/60Hz
Power Consumption 500 W (Max)
Machine Dimensions 825 (W) × 640 (D) × 1622 (H) mm
(with table & thread stand)
Production Capacity 200–240 pcs/hour
(at 3000 spm, Rib: 270mm × 60mm)

1.Auto seam detector, easy to set up the stitches after seam.
2.Quick adjustment mechanism, easy for setting and maintenance.
3.Tension controller for smooth feeding and puckering free.
4.Anti-curly edge device reduce sewing defects.
